Buy 20ft DNV Refrigerated Containers Online Certified DNV 2.7-1 Standard

Name: Buy 20ft DNV Refrigerated Containers Online Certified DNV 2.7-1 Standard - Conext Conatiner Depot
Availability: InStock

Price range: $12,000.00 through $23,000.00

Buy 20ft DNV Refrigerated Containers Online

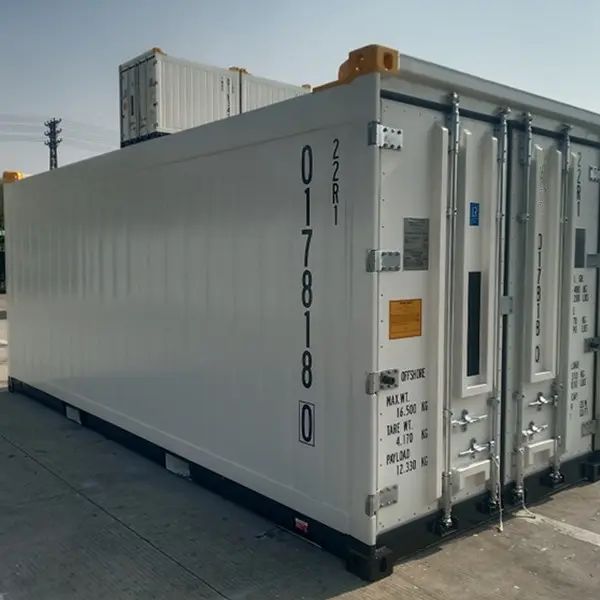

DNV 2.7-1 Standard 20ft Offshore Reefer Container

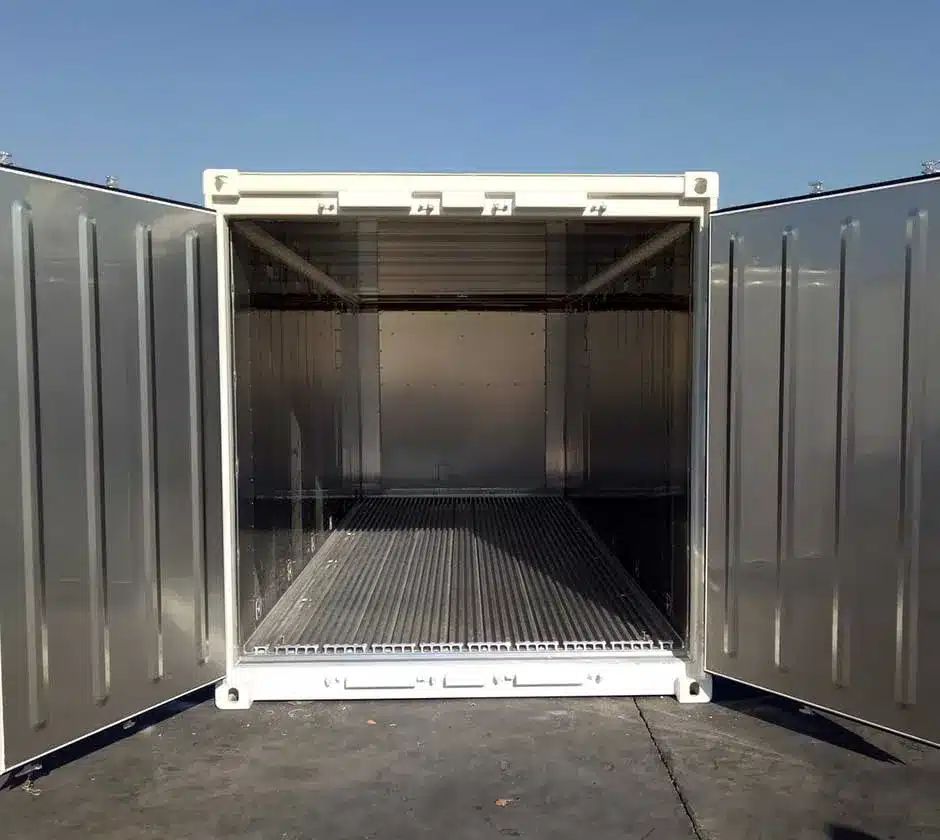

20 Feet Offshore Refrigerated Shipping Container

20ft Offshore Refrigerated Containers for Sale

DNV rated cold storage available now for sale. 10ft and 20ft sizes with global delivery.

Bringing DNV 2.7-1 Certified Offshore Reefer Containers Across the Globe

Our expertise in DNV offshore reefer container solutions has been sought after by prominent oil and gas rigs across the globe.

Buy 20ft DNV Refrigerated Containers Online

We pride ourselves on delivering unparalleled quality, reliability, and safety. Our containers are meticulously designed to meet the rigorous demands of the offshore industry, ensuring your perishable goods remain in optimal condition, regardless of the environment.

As we strive to set the benchmark in the industry, here are some of the countries where we offer our offshore reefer container delivery services.

Europe: Norway, Italy, Scotland, UK, Denmark, Netherlands, France, Germany, Romania, Kazakhstan, Azerbaijan
Asia: Taiwan, Myanmar, Thailand, Hong Kong, Vietnam, Singapore, Brunei, Saudi Arabia, Qatar
Africa: Senegal, Ghana, Nigeria, Gabon, Angola, South Africa
Americas: Canada, Rhode Island, Louisiana (USA), Mexico, Trinidad, Guyana
Oceania: Australia, New Zealand

Condition

Clear

SKU: N/A Categories: Buy Refrigerated Shipping Containers Online, DNV Offshore Containers

Description
Additional information

Buy 20ft DNV Refrigerated Containers Online

Certified to the DNV 2.7-1 Standard

20ft Dnv 2.7-1 Standard Chiller and Freezer

20FT Offshore Reefer Container with Carrier or Thermo King Refrigerated Units

A complete range of DNV offshore reefer containers for sale.

Offering the world’s most durable, energy-efficient integrated 20ft DNV reefer containers that combine the power of ICE STORM™ and THERMO KING™ refrigeration machines.

20ft DNV Offshore Reefer Container for Sale

DNV 2.7-1 Certified Offshore Reefer Container Available For Sale

Innovative technology at its best!

The 20ft Reefer is a container used to cool or freeze products, liquids and substances. This container is suitable for offshore purposes. Reefers offer a flexible solution for a shortage of refrigerated or frozen storage. This container can cool and freeze up to -25 degrees Celsius. On the contrary, it is also possible to transport and store goods up to +25 degrees Celsius. The 20ft Reefer is both for rent and for sale. All our offshore containers are certified in accordance with standards Certifications DNV 2.7-1, EN 12079, ISO and CSC.

20ft Reefer Offshore DNV 2.7-1 / EN12079

20ft offshore Reefer

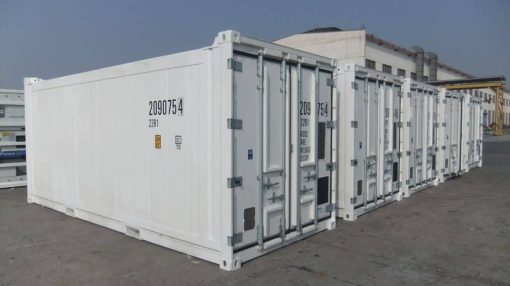

20ft offshore reefers are used for refrigerated transport and storage of food and non-food products at the offshore location. The reefer containers can be stacked with the sling mounted.

DNV 2.7-1 Certificated 20 Ft Offshore Chiller Shipping Container

Container modification

Does the container not fully meet your wishes and requirements? Our engineers and welders are fully certified to be able to carry out adjustments to containers according to your wishes.

Key Features

Our offshore reefer containers provide energy efficient, portable and secure storage of goods requiring temperature control.

DNV 2.7-1 certified and CSC plated

Robust, reliable and proven design

Units can be stacked with their slings still attached

Modifications available

Convenient, standard size cold storage

Full operational support for leasing

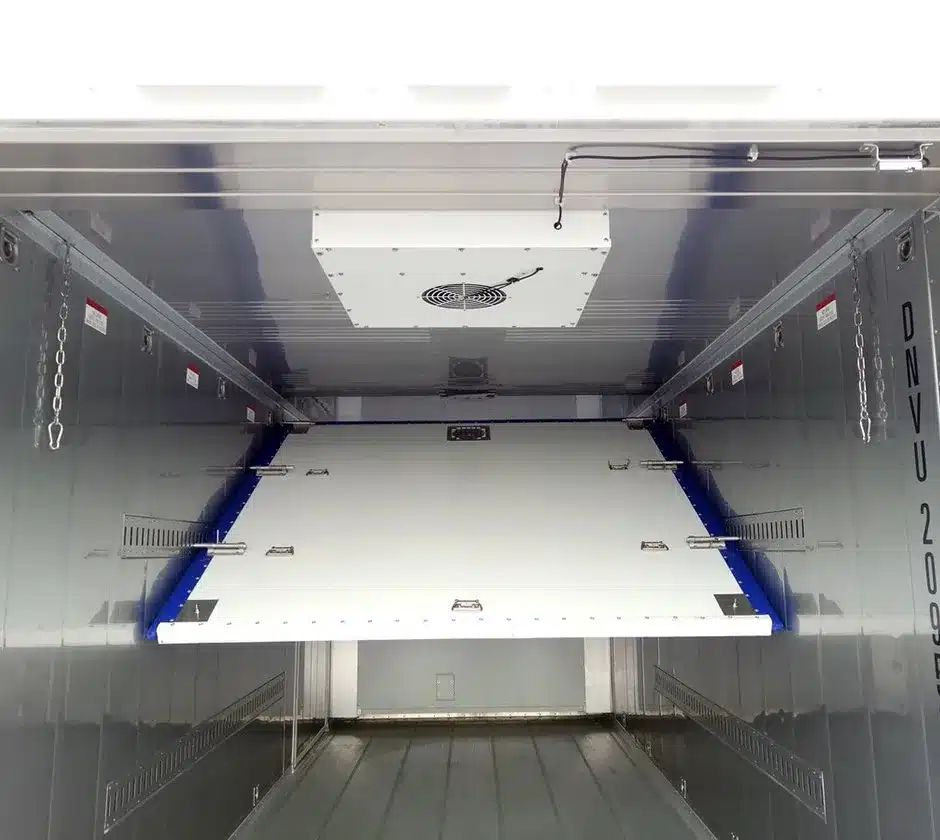

Twin Room Reefer can freeze and chill goods

Built for the high ambient temperatures of the Middle East (+50°C)

20ft Offshore Reefer Dimensions

All specifications are indicative. Individual container’s dimensions may differ.

Feature

Specification

Slings: Units supplied with DNV certified slings

External Nominal Dimensions: 20’ x 8’ x 8’ 6” (high) 6.06m x 2.44m x 2.59m (high)

Internal Dimensions: 18’ x 7’ 7” x 7’ 6”, 5.49m x 2.28m x 2.26m

Cubic Capacity: 957 ft³, 27 m³

Tare Weight: 11,180 lbs, 5,070 kgs

Max Gross Weight (for offshore): 44,090 lbs, 20,000 kgs

Max Payload (for offshore): 32,910 lbs, 14,930 kgs

Refrigeration: Daikin, Carrier Transicold or Thermo King

Set Temperature Range: -35ºc to +30ºc in ambient up to +50º

Control: Integrated Microprocessor control unit.

Designed, Built and Certified: CCUs manufactured pre 2018 – Designed, built and certified to DNV 2.7-1 / BS EN12079, CCUs manufactured post 2018 – Designed , built and certified to DNV 2.7-1 / ISO 10855-1

Compliance with International Standards: This container meets the DNV 2.7-1 and EN12079 design standards, ensuring it is certified for safe and reliable operation in offshore environments.
Spacious Capacity: With a capacity of 27 cbm, this reefer container provides ample space for storing perishable goods, making it ideal for transporting temperature-sensitive products.
Durable Construction: Built with high-quality corten steel and Q345D materials, this container is designed to withstand harsh offshore conditions, ensuring a long lifespan and minimal maintenance.
Customizable Power Options: Available in 380/460V, 3-phase, and 50/60Hz power configurations, this container can be easily integrated into various offshore systems, accommodating different user requirements.
Optional Sling and Versatile Cooling: Equipped with a Daikin/Thermo King/Carrier cooling unit, this container offers adjustable temperature control, and the optional sling feature allows for easy transportation and placement in various offshore locations.

What is an Offshore Reefer Container?

Offshore reefer containers (also known as Offshore refrigerated containers) are used within the shipping industry to transport temperature-sensitive products that need refrigeration. Within the oil and gas industry, they are also popularly known as “skids.”

MGS offshore reefer containers have data monitoring systems, automated temperature and ventilation control, offering complete reliability in supplying perishable products to offshore locations.

10' Offshore Refrigerated Container for Sale Near Me | Tradecorp

20ft Offshore Reefer

20 FT HC DNV ISO OFFSHORE INTERMODAL SHIPPING STORAGE CONTAINER

Special feature: Offshore high cube container with slings, useable for the offshore industry

External / Internal
Length: 6.058 mm 20 ft / Length: 5.898 mm 19 ft 4“
Width: 2.438 mm 8 ft / Width: 2.350 mm 7 ft 7“
Height: 2.896 mm 9 ft 6“ / Height: 2.695 mm 8 ft 8“

Door opening
Width: 2.340 mm / 7 ft 7“
Height: 2.585 mm / 8 ft 5“

Weight table
Tare weight: 4.110 kg / 9060 lb
Max. load: 13.360 kg / 29453 lb
Total Test (2.5.R): 33.400 kg / 73634 lb
Volume: 33.3 m³

DNV 8' x 10' Insulated Container | Tiger Offshore Rentals

Offshore containers are containers that are used on the high seas and have to meet offshore requirements for high waves, as well as for salty seawater. This means that the containers must withstand severe weather conditions. For this reason, offshore containers are very sturdy and made of thick and strong steel, and are wind and waterproof.

Their lashing eyes are particularly robust, since the containers usually have to be loaded with the crane, and thus bare the entire net weight. There are also custom built options with electrical installation installed, such as a control center on drilling rigs, or to act as a living container. The containers are certified with DNV GL amongst other oil and gas industry and offshore classification. DNV 2.7-1, ISO 10855, EN12079, IMO MSC.

20ft offshore reefer container

1. Approval by Main Classification Society: BV / DNV / LR
2. Complies With DNV2.7-1:2006 and EN12079:2006 Standard
3. Surface Treatment: High Anti-Corrosion Painting or Hot Deep Galvanized
4. Design Temperature: – 20 ºC (Also provide – 40 ºC Design)Specification

Type	10ft offshore	20ft offshore
External(m)	2.991 x 2.438 x 2.591	6.058 x 2.438 x 2.591
Internal(m)	2.390 x 2.294x 2.165	5.454 x 2.294 x 2.165
Inside Cubic Capacity(m³)	11.86	27
Maximum Gross Weight(KG)	10000	20000
Tare Weight(KG)	3040	5070
Maximum Payload(KG)	6960	14930
Lifting Angle	45ºC	45ºC
Main Circuit	3 Phase, AC 440, 460V/380, 400, 415
